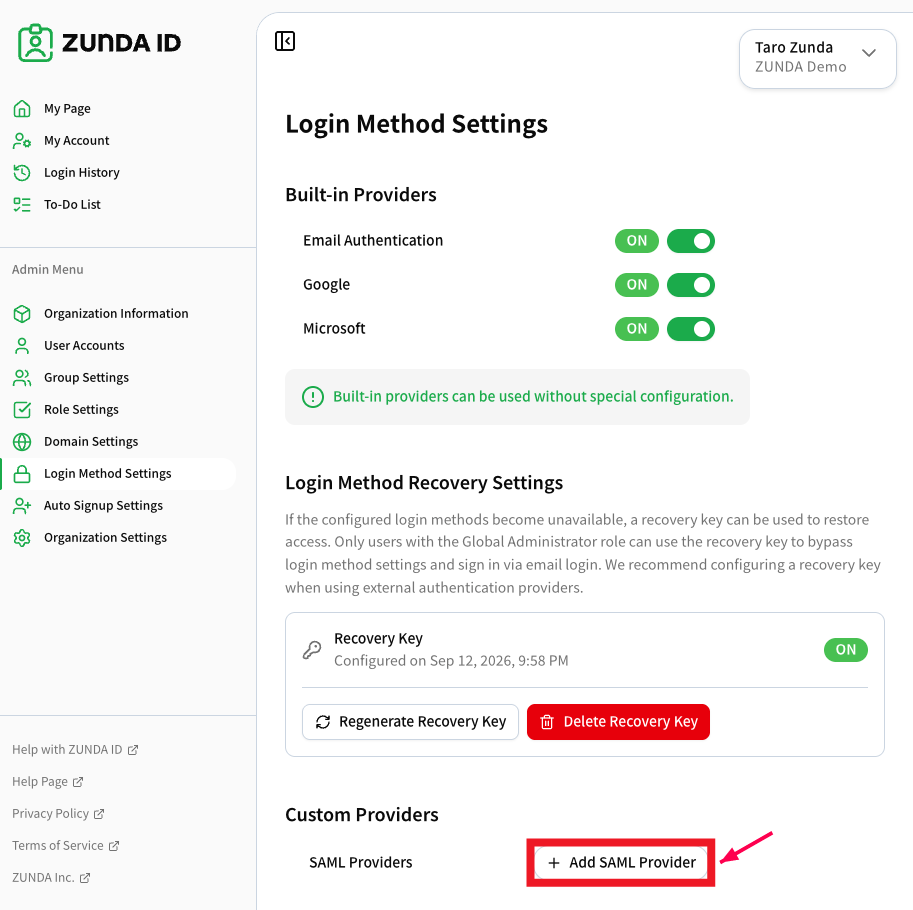

Open the Login Method Settings screen in ZUNDA ID, and click Add SAML Provider.

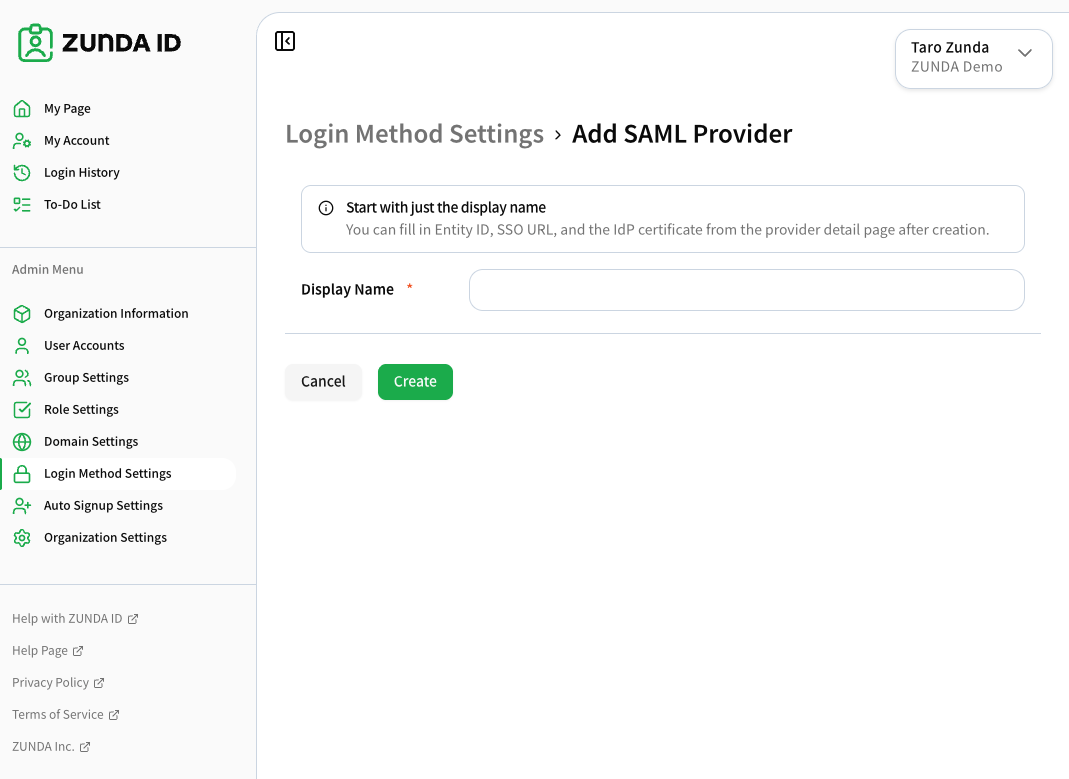

In the dialog that appears, enter a display name of your choice to identify this provider (for example, HENNGE). The name you enter here is shown on the login screen and in settings screens.
Click Create to go to the provider details screen.

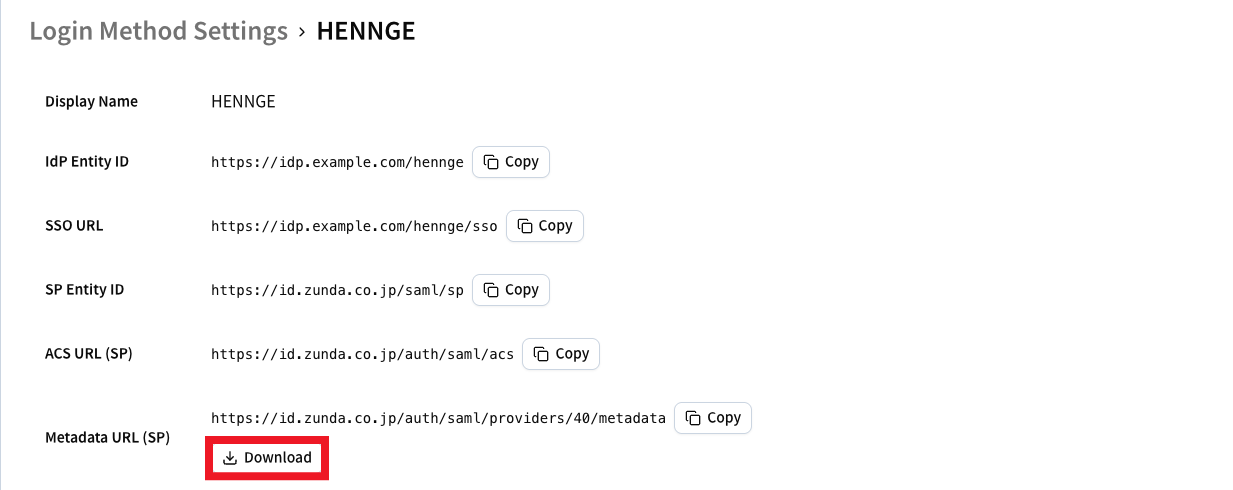

On the provider details screen, download the Metadata URL (SP).
You'll use this screen again, so leave it open.
Switch to the HENNGE One admin console.

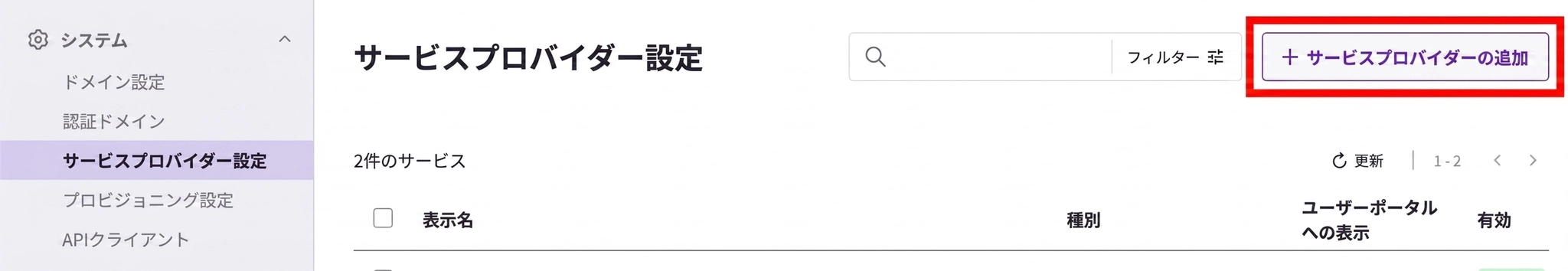

From Service Provider Settings, add a service provider.

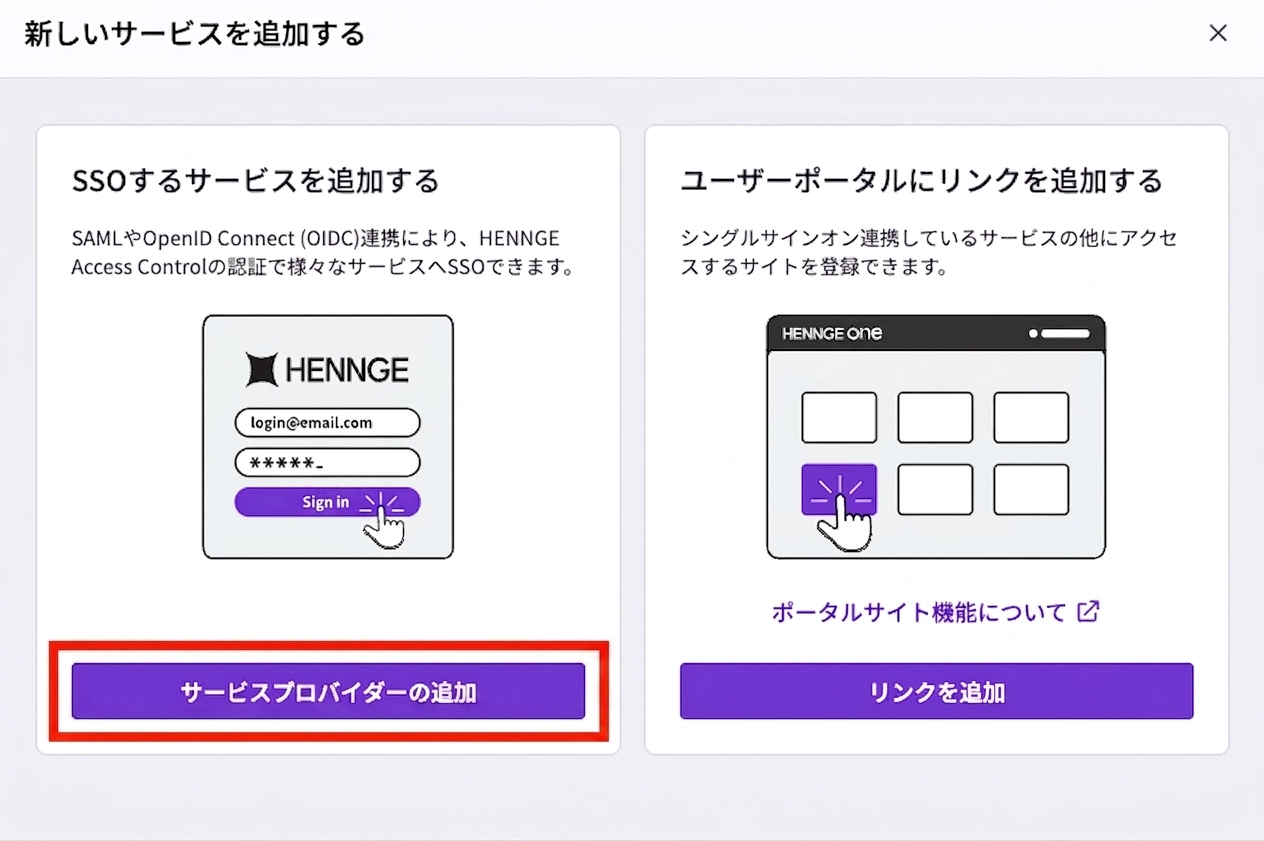

Click Add Service Provider.

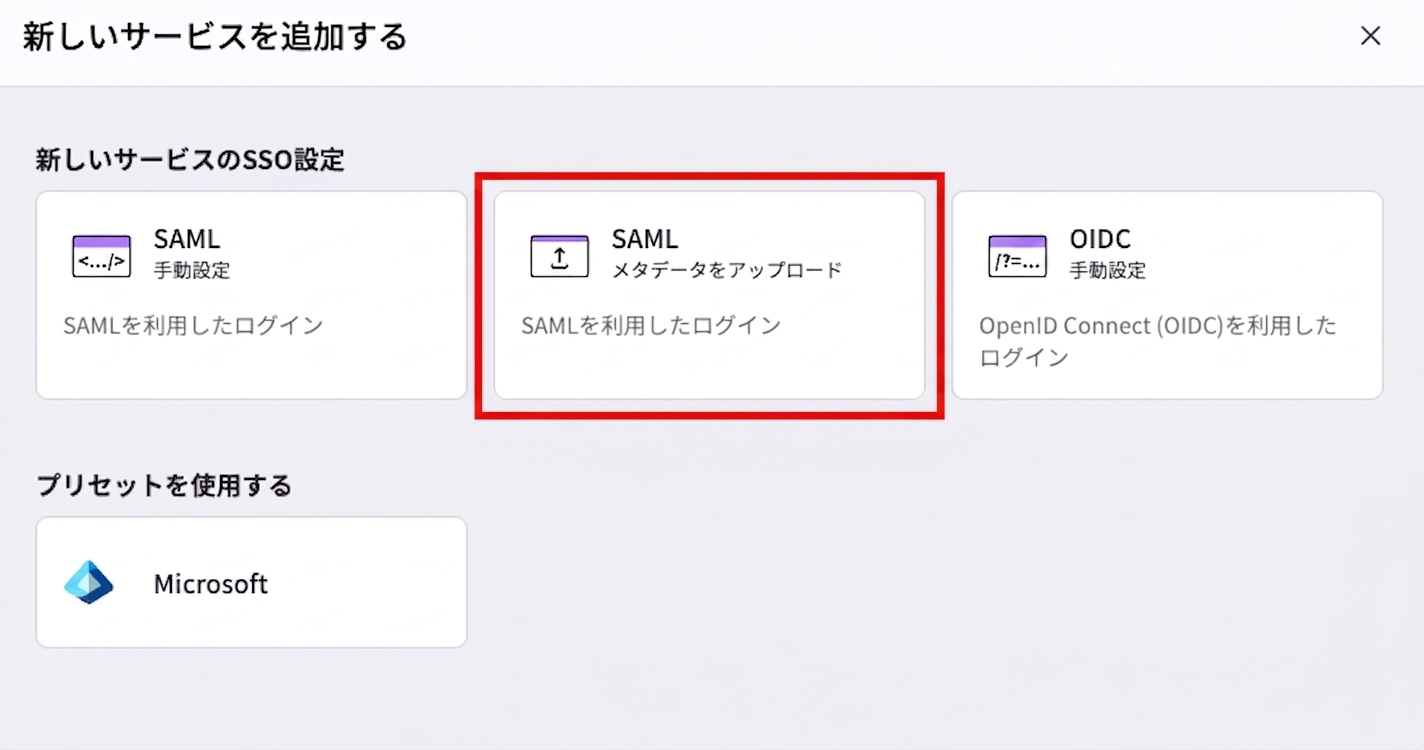

Select SAML (Upload Metadata), and follow the on-screen instructions to upload the metadata you downloaded from ZUNDA ID.
Importing the metadata sets up, in one step, the ACS URL, SP issuer, and other settings HENNGE One needs to connect with ZUNDA ID.
Enter a service name of your choice (for example, ZUNDA ID). The name you enter here is shown on the login screen and in settings screens.

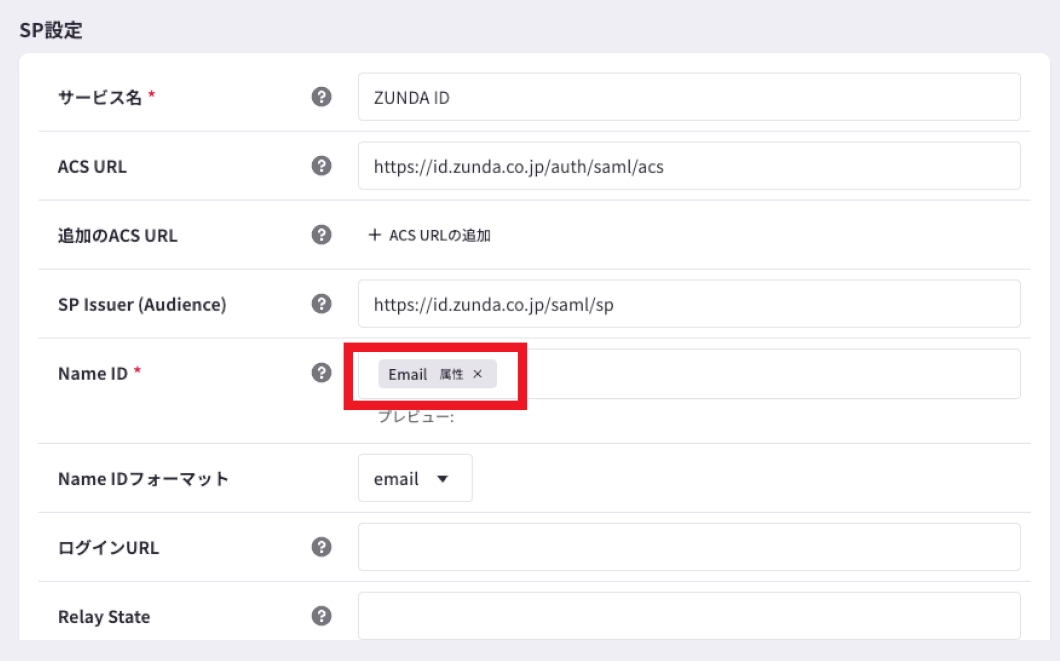

Confirm that the Name ID is set to Email Attribute.
Click Save to create the service provider.

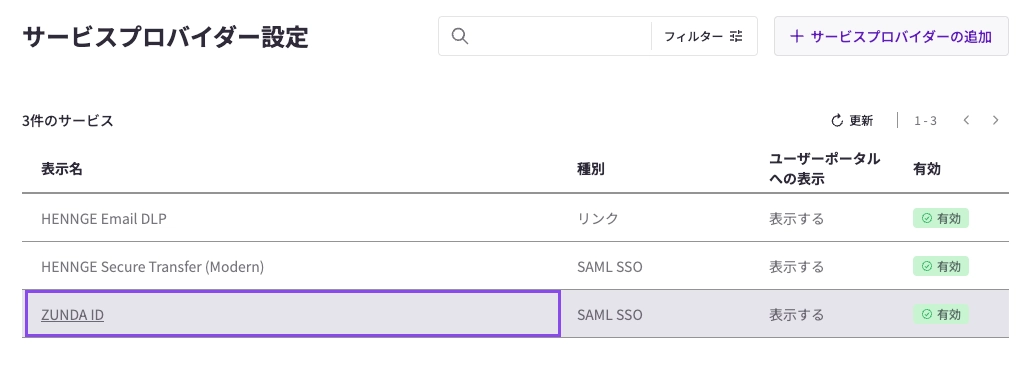

Click the display name of the service provider you created to open its detailed settings.

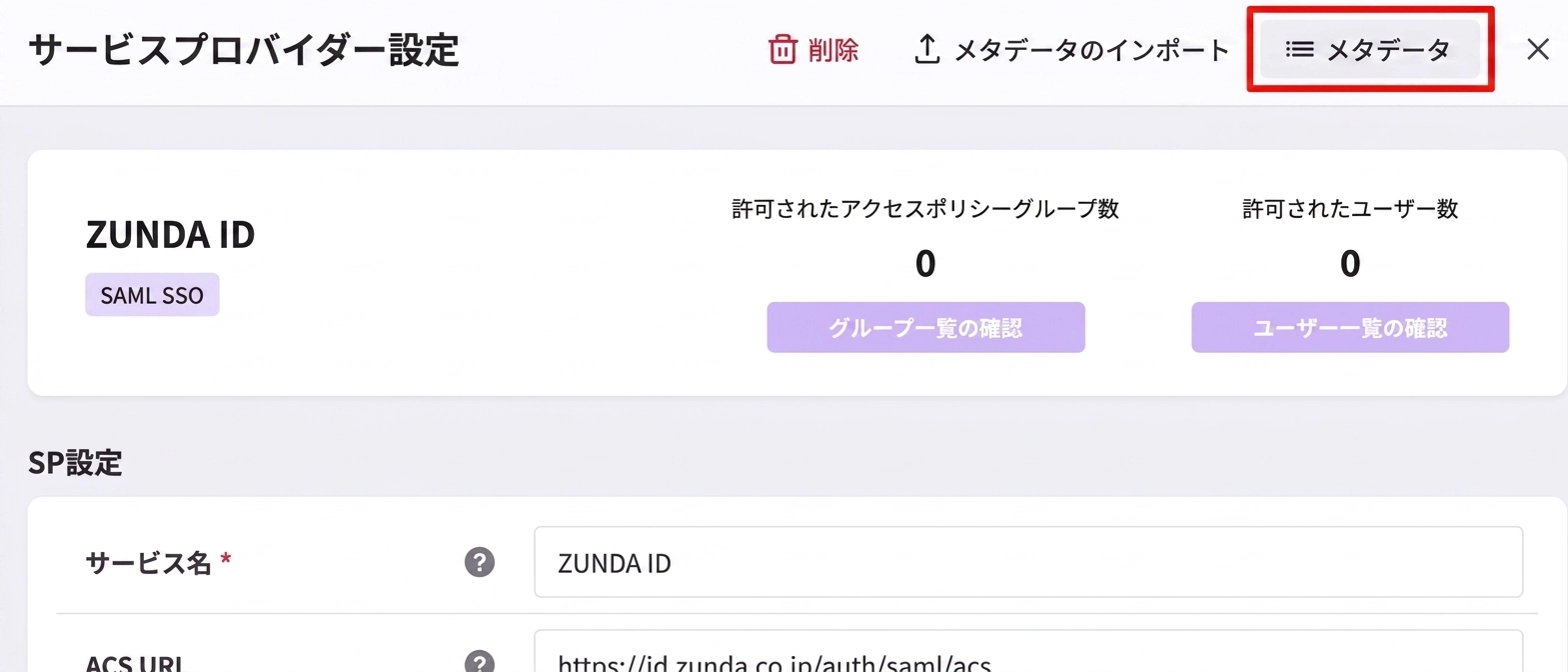

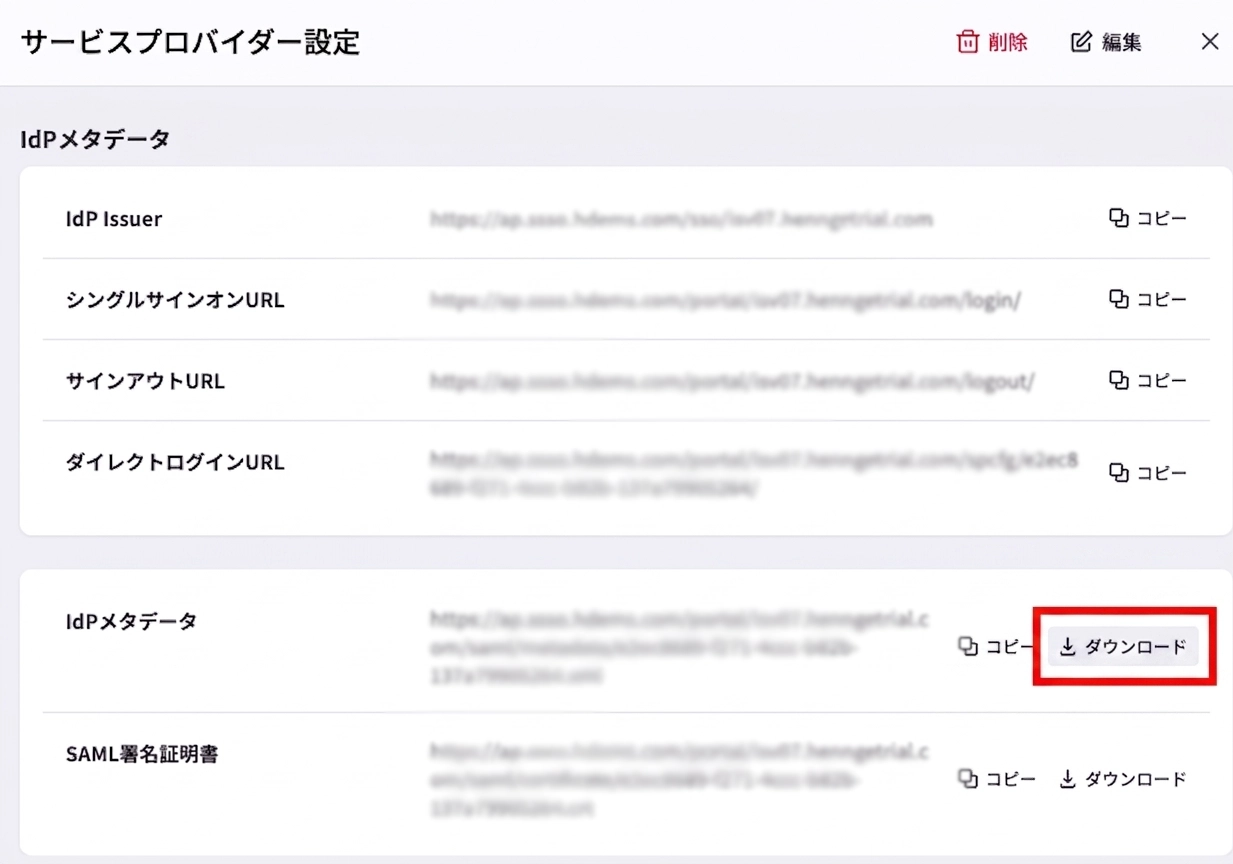

Open the Metadata menu.
Download the IdP Metadata.

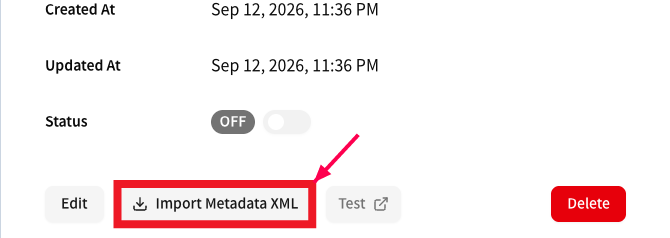

Return to the provider details screen in ZUNDA ID, click Import Metadata XML, and import the IdP metadata XML you downloaded earlier.
Importing the metadata sets up, in one step, the SSO URL, entity ID, IdP certificate, and other settings ZUNDA ID needs to verify responses from HENNGE One.

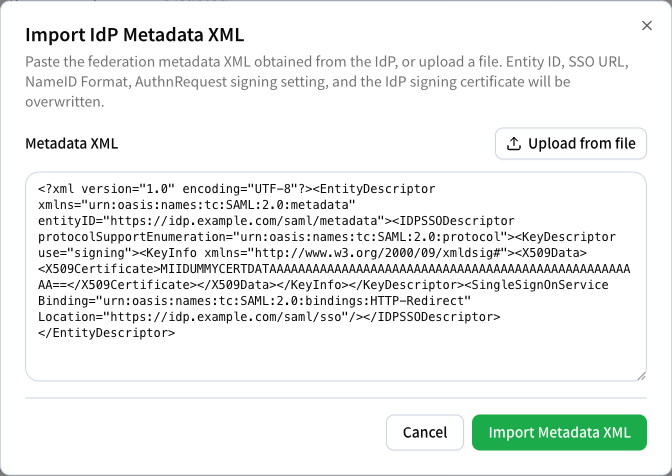

In the dialog that appears, click Upload from file and select the IdP metadata XML file you saved earlier.
Confirm the file has loaded, then click Import Metadata XML. If the file is invalid, an error is displayed — if that happens, download the metadata again and retry.
Confirm that the IdP Entity ID, SSO URL, IdP certificate, and other fields have all been imported. The SAML provider setup on the ZUNDA ID side is now complete. In the next step, you'll run a login test to confirm the settings work correctly.

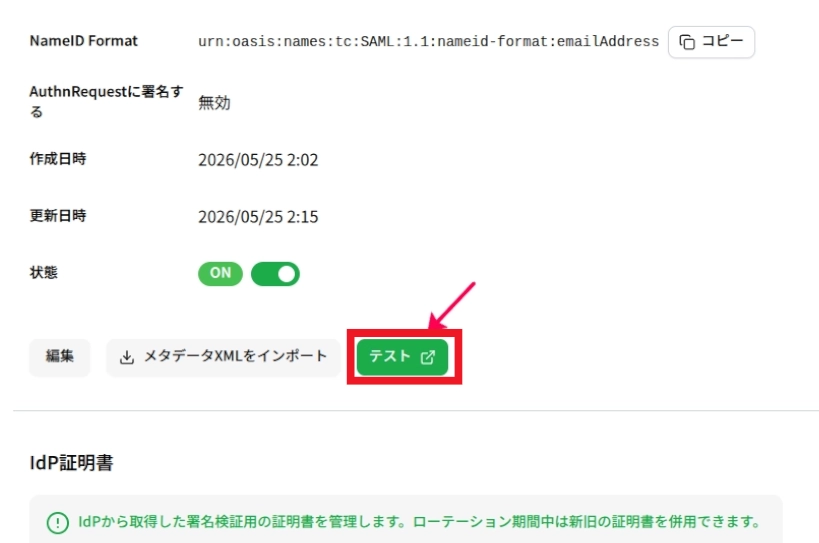

Click the Test button to open the HENNGE One login screen. If pop-ups are blocked, temporarily disable your browser's pop-up blocker.

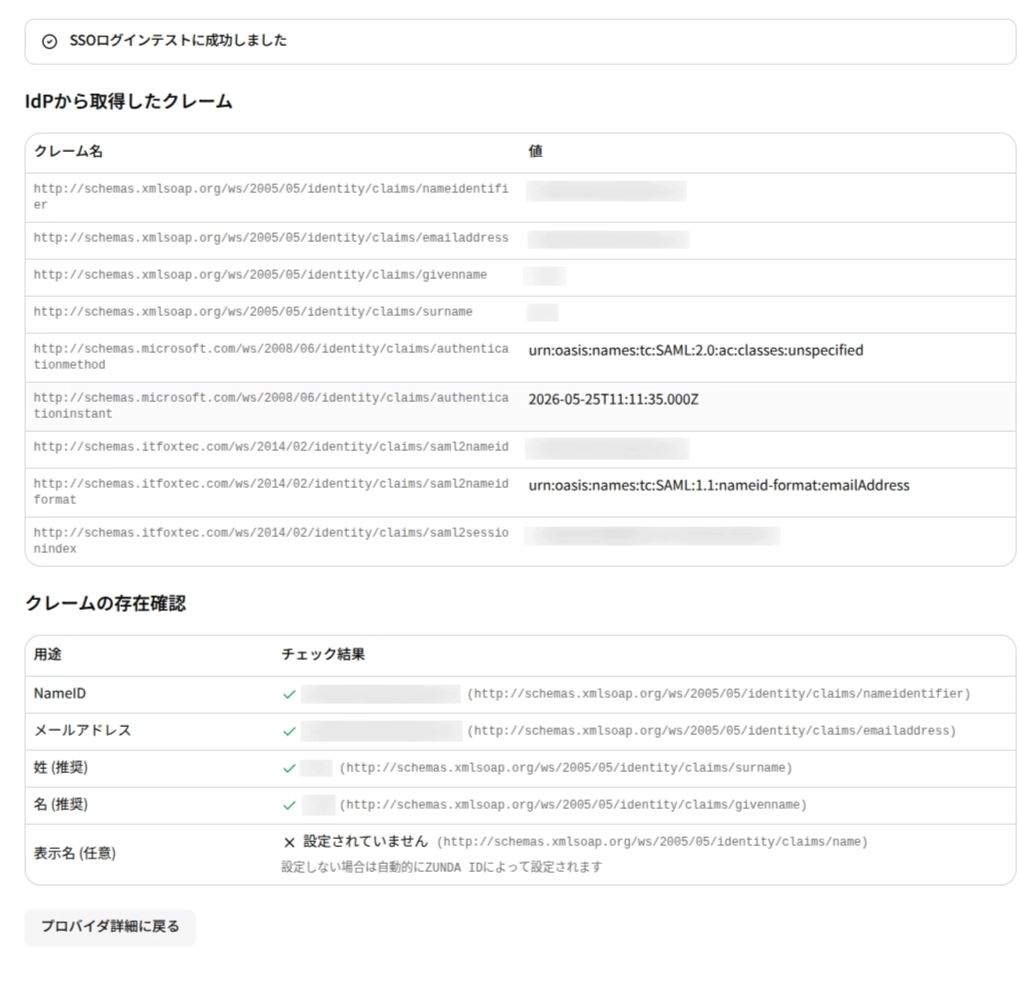

If an error is displayed, or a check item is marked in red, check the following:
- Whether the IdP metadata XML was imported correctly
- Whether HENNGE One's attribute mapping (First Name / Last Name) is configured correctly
- Whether the HENNGE One service provider details (ACS URL, entity ID) are correct
Once the test succeeds, return to the provider details screen and switch Status to ON to enable SAML login. After that, select this provider as a login method in Domain Settings so actual users can log in using SAML authentication.
